Description
Industrial chamber vacuum packing machine – 2 × 84 cm sealing bars: an extra-large double-chamber model for high-throughput production lines.

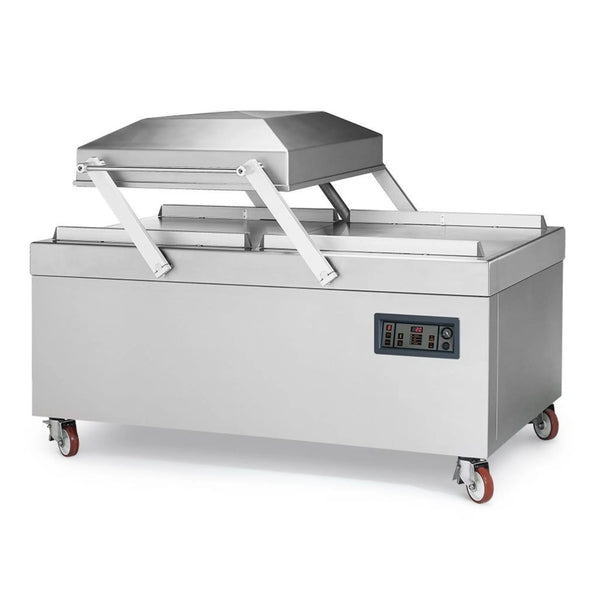

The Prime 285 is an industrial double-chamber vacuum packing machine designed for facilities that need to pack large products quickly and consistently. With its 300 m³/h pump, two 840 mm sealing bars and short 10 to 30 second cycle, it is intended for food production facilities, industrial butcheries, central kitchens and processing plants seeking to reduce idle time between loads.
Productivity advantage: 2 × 84 cm sealing bars
The two extra-long 840 mm bars can seal large bags or several bags aligned in a single cycle. While one chamber is operating, the other can be loaded, keeping the packing workflow continuous.
Designed for industrial throughput
1. Double-chamber operation with no idle loading time
The double-chamber format is designed for workstations where the operator should not have to wait for a cycle to finish. One chamber can be loaded while the other performs the vacuum and sealing cycle. This configuration is particularly suitable for long production runs, repeat batches and high daily volumes.
2. 300 m³/h pump and fast cycle
The extraction capacity of 300 m³/h allows the machine to process a large chamber with a stated cycle time of 10 to 30 seconds. This pumping capacity supports a steady throughput with bulky products or wide bags.
3. Stainless steel, flat work surface and automated maintenance
The stainless steel housing and flat work surface simplify cleaning in professional settings. The sealing bars are easy to remove, and the machine includes an automatic pump maintenance and cleaning programme to simplify routine servicing.
Technical summary
| Specification | Details | Operational implications |
|---|---|---|
| Machine type | Industrial double-chamber vacuum packing machine | Continuous workflow: one chamber cycles while the other is loaded. |
| Sealing bars | 2 x 840 mm | Suitable for large bags and for packing several bags per cycle. |
| Chamber dimensions | 840 x 830 x 255 mm | Generous usable depth for bulky products and large batches. |
| Vacuum pump | 300 m³/h | Pumping capacity suited to industrial throughput and large volumes. |
| Cycle time | 10 to 30 seconds | Short cycle time to limit operator waiting during repeat runs. |
| Construction | Stainless steel, stainless finish | Durable surface that is easy to clean in a food-processing facility. |
| Work surface | Flat | Simplifies bag loading and direct cleaning after production. |
| Pump maintenance | Automatic maintenance / cleaning programme | Makes it easier to carry out regular pump maintenance. |
| Overall dimensions | 1980 x 1230 x 1180 mm (L x D x H) | An extra-large machine requiring a dedicated production area. |
| Net weight | 685 kg | Industrial stability; handling and siting must be planned in advance. |
| Power supply | 400 V / 50 Hz | Requires a suitable three-phase supply; this machine cannot be connected to a standard socket. |
| Total power | 7 to 9 kW | Power rating consistent with a high-throughput industrial production line. |
| Installation | Freestanding, mobile | Self-supporting machine to be positioned directly in the production area. |
| Plug ready | No | Professional electrical installation is required before commissioning. |
| Parcel shipping | No | Heavy, bulky product: delivery arrangements and facility access must be checked. |
| EAN | 6017437115140 | Clear product identification for purchasing and internal traceability. |
| Reference | 7004.0055 | Supplier reference to quote for technical or after-sales enquiries. |
Check before purchase: this machine operates on 400 V, has a total power rating of 7 to 9 kW and a net weight of 685 kg. It must be installed in an industrial environment with suitable access, handling provisions and electrical supply.
Who is it for?
- Butcheries and cutting plants packing large volumes of meat.
- Central kitchens and industrial caterers requiring consistent throughput.
- Batch food production using large smooth vacuum bags or several bags per cycle.
- Processing plants and packing areas seeking a robust, easy-to-clean stainless steel solution.
To compare it with smaller models, see our range of chamber vacuum packing machines or browse all our professional vacuum packing machines.
