Description
Giant 52 industrial chamber vacuum packing machine: two 52 cm sealing bars and a 63 m³/h pump for packing large volumes in each cycle.

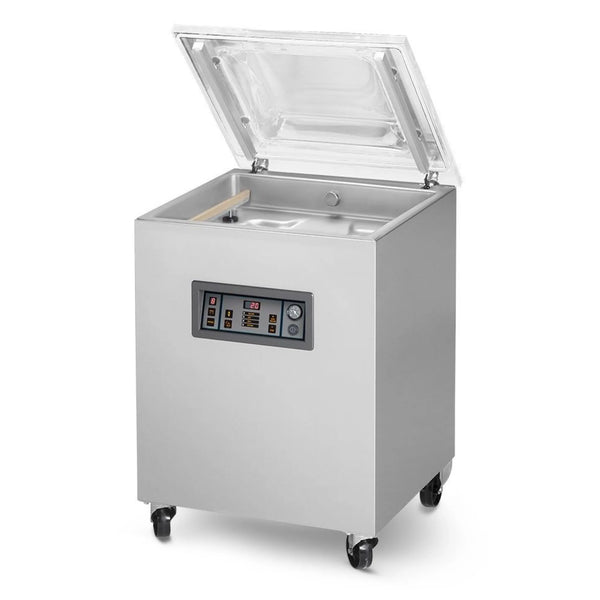

The Combisteel Giant 52 is a mobile professional chamber vacuum packing machine designed for central kitchens, butcheries, processing facilities, caterers and food production operations using wide smooth vacuum bags or several bags at a time. Its 500 × 520 × 200 mm chamber, two opposing 520 mm sealing bars and stated 15 to 40 second cycle form a freestanding workstation suited to intensive use.
Giant 52 chamber layout
Its two 520 mm bars, positioned on the left and right sides of the chamber, make use of both sides of the loading plate. A single large bag or several smaller bags can be arranged according to their size, using the available area in each cycle.
A chamber machine designed for large volumes
1. 63 m³/h pump and 15 to 40 second cycles
The 63 m³/h pump provides the extraction capacity required for a chamber of this size. The stated cycle time of 15 to 40 seconds allows the process to be adjusted to the product and the required vacuum level while maintaining steady throughput across production runs.
2. Two removable 520 mm bars
The two 52 cm sealing bars increase the usable sealing capacity for each load. Their removable design simplifies access for cleaning and routine maintenance. Whether packing large bags or individual portions, the operator can arrange the chamber to suit the bag format.
3. Deep chamber and stainless steel construction
The chamber measures 500 × 520 × 200 mm. Its 200 mm depth accommodates thick cuts, products in trays and bulky items beyond the capacity of a conventional tabletop machine. Stainless steel construction provides a durable surface that is easier to maintain in a professional environment.
4. A mobile freestanding workstation
With its integrated castors, the Giant 52 can be moved for floor cleaning or to reorganise the processing area. Its freestanding design avoids the need for a reinforced worktop while retaining a practical working height for a dedicated packing station.
Full technical specifications
| Specification | Details | Operational implications |
|---|---|---|
| Machine type | Freestanding single-chamber vacuum packing machine | Independent workstation that does not take up worktop space. |
| Vacuum pump | 63 m³/h | Capacity suited to a large chamber and intensive production runs. |
| Sealing bars | 2 × 520 mm, left and right | Large bags or several bags positioned on both sides. |
| Chamber dimensions | 500 × 520 × 200 mm (L × D × H) | Accommodates thick cuts and bulky prepared products. |
| Cycle time | 15 to 40 seconds | Steady throughput according to the product and required vacuum level. |
| Construction | Stainless steel, stainless finish | Durable surface that is easier to clean day to day. |
| Mobility | Freestanding model on castors | Easier to move when reorganising or cleaning the area. |
| Controls | Front control panel | Settings are accessible at operator height. |
| External dimensions | 700 × 690 × 1030 mm (L × D × H) | Allow for floor space, access routes and lid clearance. |
| Net weight | 143 kg | Stable machine; access and handling must be planned in advance. |
| Power supply | 400 V / 50 Hz | A suitable professional electrical connection must be provided. |
| Total power | 2.4 to 3.5 kW | Check the electrical circuit and protection before installation. |
| Plug ready | No | Cannot be commissioned from a standard domestic socket. |
| Parcel shipping | No | Professional delivery and site-access conditions must be arranged. |
| Brand | Combisteel | Clear identification for documentation and after-sales support. |
| Reference | 7004.0045 | Exact reference for any technical enquiry. |
| EAN | 6017431377308 | Straightforward traceability for purchasing and internal stock management. |
Check before ordering: the Giant 52 operates on 400 V, has a 2.4 to 3.5 kW power rating, weighs 143 kg and is not plug ready. Have the electrical supply, delivery access, doorway widths and handling conditions checked before dispatch.
Who is it for?
- Butcheries and cutting plants: large cuts of meat and portion runs.
- Caterers and central kitchens: volume preparations and batch organisation.
- Fishmongers and processing plants: long or bulky products requiring a deep chamber.
- Food production: regular packing with professional smooth vacuum bags.
Choosing the right consumables
Like any chamber machine, the Giant 52 is designed for smooth vacuum bags. Choose a width compatible with the 520 mm bars and leave sufficient clearance around the product to position the bag opening correctly on the sealing bar.
To compare formats, see our range of chamber vacuum packing machines and all our professional vacuum packing machines.
Manufacturer documentation and references
- Manufacturer reference : Combisteel 7004.0045 — Technical sheet — PDF (English) User manual — PDF (Dutch) User manual — PDF (English) User manual — PDF (German) User manual — PDF (French)
