Description

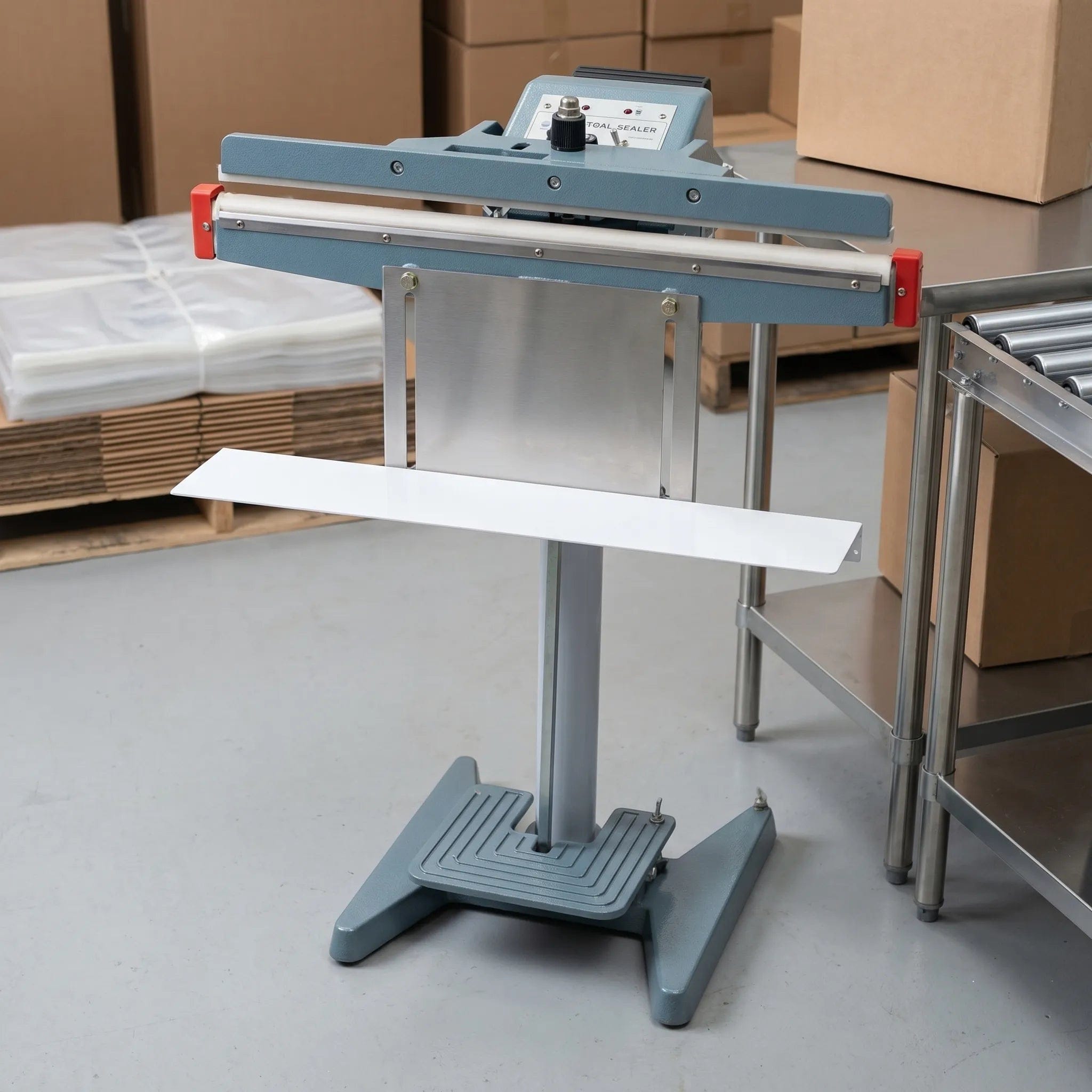

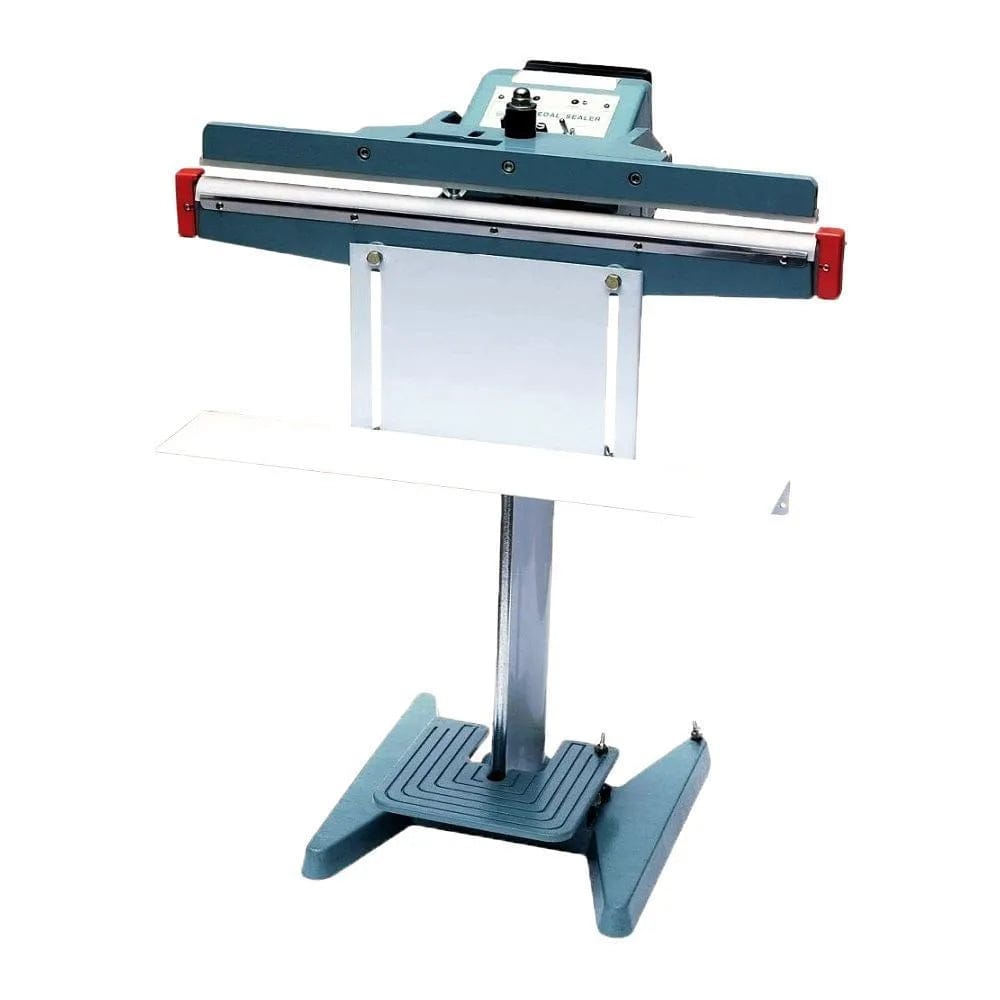

A hands-free packing station, available in 300, 450 or 600 mm, for accurate bag positioning and sealing.
This industrial foot-operated sealer is activated by a pedal, leaving both hands free to position the bag and smooth out creases. The three seal lengths — 300, 450 and 600 mm — let you match the machine to your packaging, while single-side heating and Bi-Active heating on both sides cover different bag thicknesses.
6 configurations for your packing station
Choose the required seal length (300, 450 or 600 mm), then select the heating system: single-side heating for standard films, or Bi-Active heating on both sides for thicker packaging. Every configuration produces a 5 mm-wide seal.
Which seal length should you choose?
300 mm: compact format
For bags up to 30 cm wide and workstations where space is limited.
450 mm: extra room for wider bags
For larger packs, with more tolerance when positioning the bag.
600 mm: wide format
For bags up to 60 cm and large-format industrial or bulk packaging.
Single-side or Bi-Active heating?
The range offers two heating systems, each available in 300, 450 and 600 mm:
Single-side heating: standard PE and PP films
- One heating element producing a 5 mm seal.
- Suitable for LDPE, HDPE and polypropylene bags.
- Stated maximum thickness: 2 × 0,15 mm.
- Power by seal length: 450 W, 600 W or 800 W.

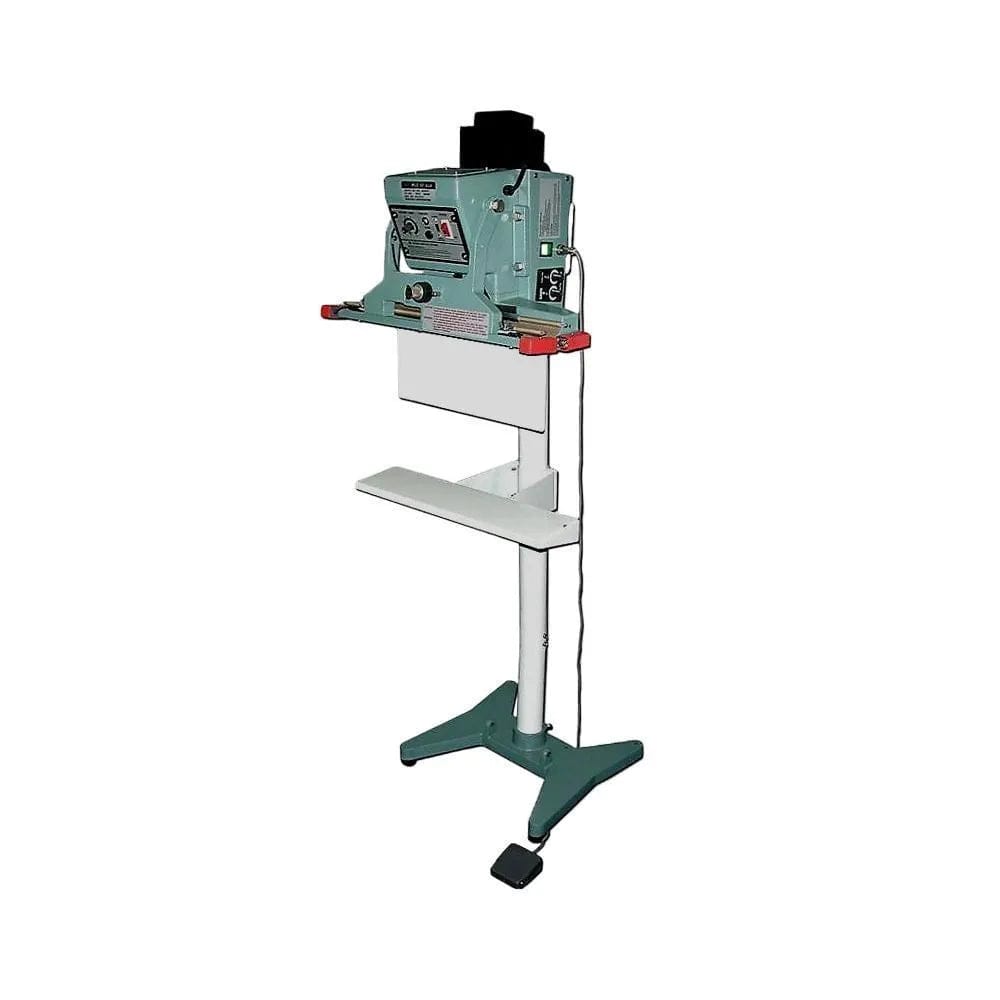

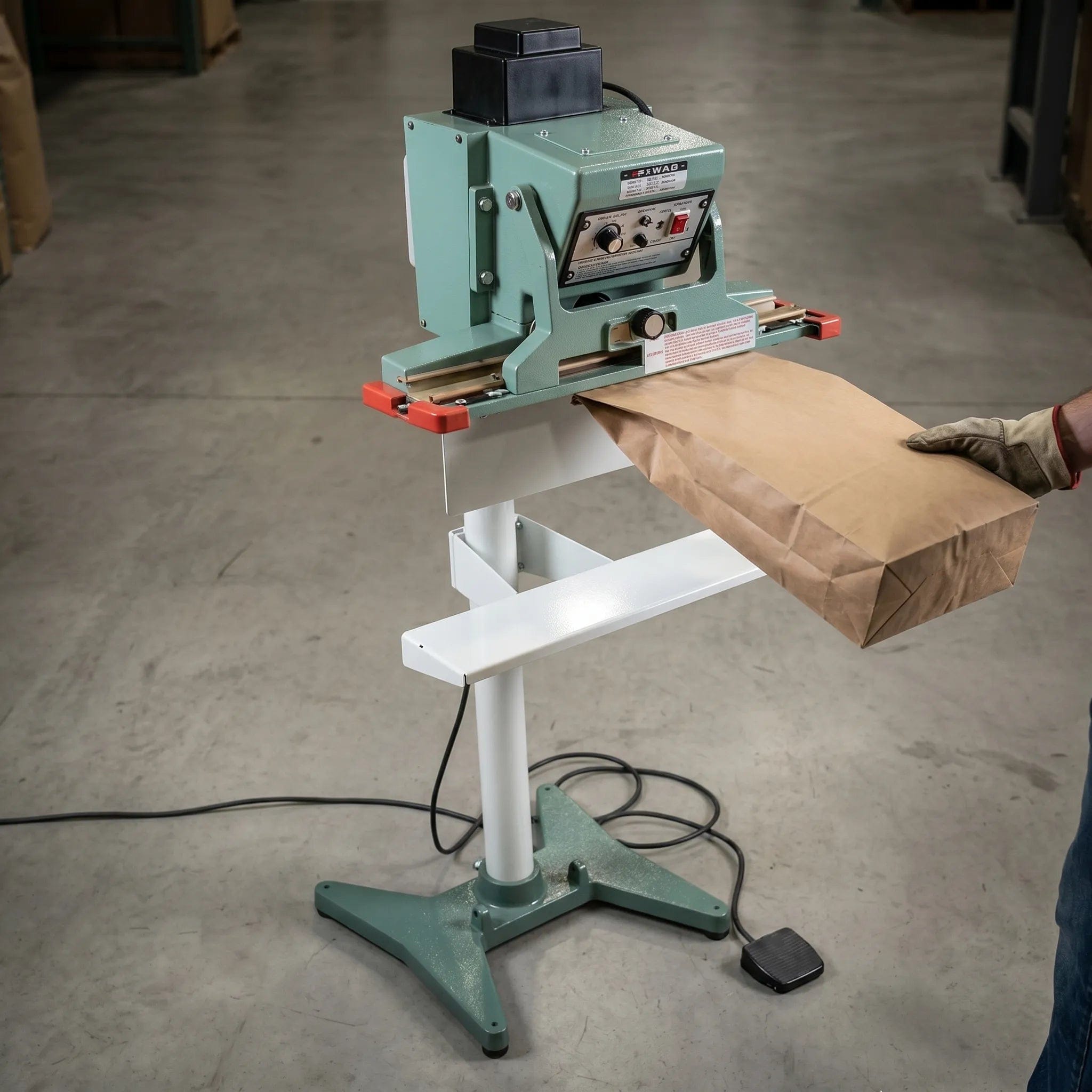

Bi-Active: heating on both sides
- Upper and lower heating elements, with an adjustable head.
- Designed for thicker packaging or packs with several layers across the sealing area.
- Stated maximum thickness: 2 × 0,5 mm.
- Power by seal length: 1 600 W, 1 900 W or 2 300 W.
How foot operation improves the workflow

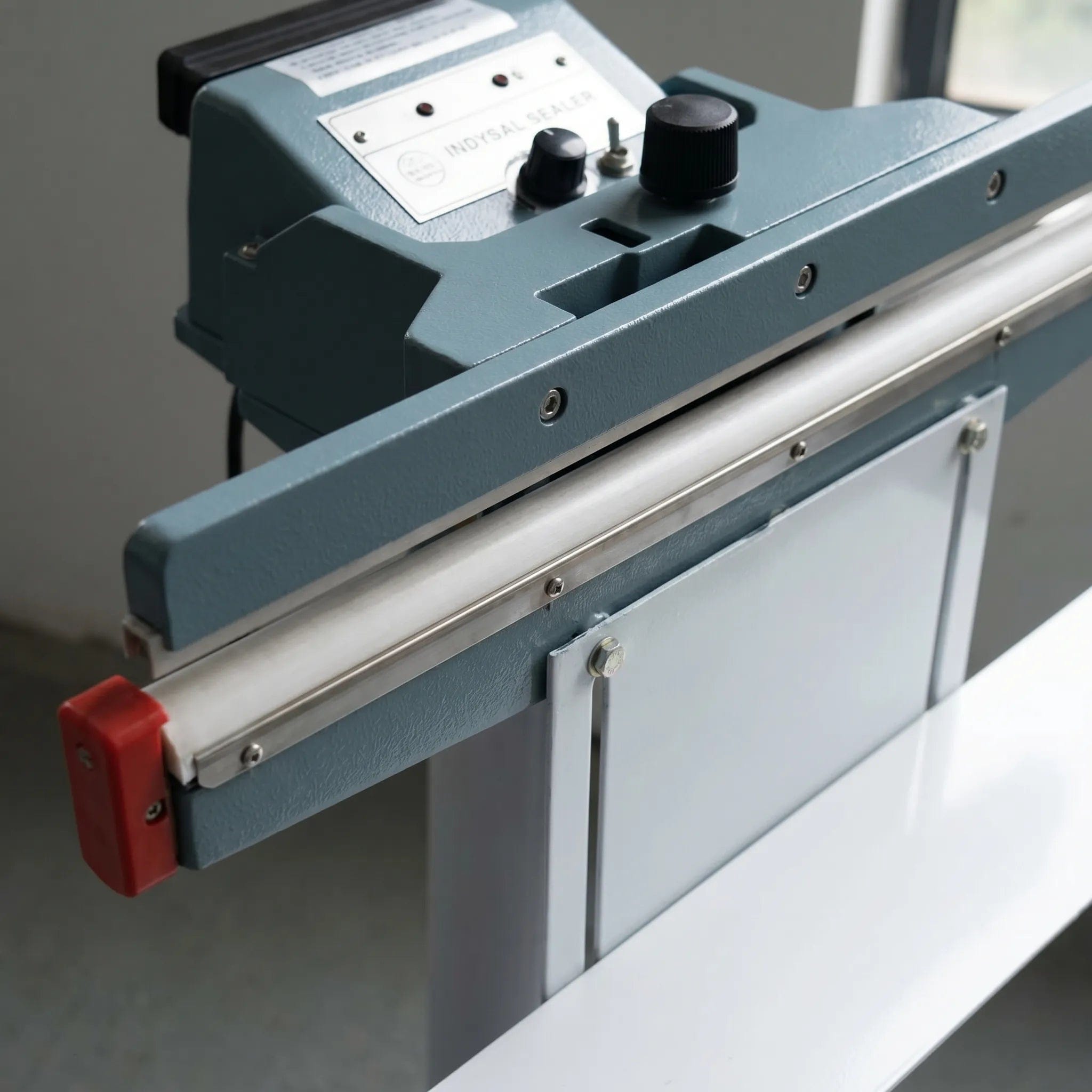

Foot activation keeps both hands free to tension and align the bag. The adjustable support shelf holds it at the required height. Heating can be adjusted to suit the film thickness, while the heating elements and PTFE strips can be replaced when worn.
Technical specifications by configuration
| Configuration | Technical details | Best suited to |
|---|---|---|
| Single-side 300 mm | 450 W · 21,5 kg · max. 2 × 0,15 mm | Compact sealing for standard bags up to 30 cm. |
| Single-side 450 mm | 600 W · 25 kg · max. 2 × 0,15 mm | Extra width for standard films. |
| Single-side 600 mm | 800 W · 26,5 kg · max. 2 × 0,15 mm | Large standard bags up to 60 cm. |
| Bi-Active 300 mm | 1 600 W · 34 kg · max. 2 × 0,5 mm | Heating on both sides for small-format, thick packaging. |
| Bi-Active 450 mm | 1 900 W · 35 kg · max. 2 × 0,5 mm | Heating on both sides with a versatile mid-range width. |
| Bi-Active 600 mm | 2 300 W · 37 kg · max. 2 × 0,5 mm | Wide-format configuration for thick bags. |
| Common specification | Details | Operational benefit |
|---|---|---|
| Machine type | Foot-operated impulse sealer | Both hands remain free to guide the bag. |
| Available seal lengths | 300, 450 or 600 mm | Choose the sealing bar that matches your packaging width. |
| Seal width | 5 mm | A wide seal that is easy to inspect visually. |
| Technology | Impulse sealing with adjustable heat setting | Adjust the setting to suit the film thickness. |
| Consumables | Replaceable heating elements and PTFE strips | Wear parts can be replaced without replacing the machine. |
| Accessory | Adjustable support shelf | Holds the bag at a more comfortable working height. |
| Power supply | 220–230 V / 50 Hz | Check the power requirement for the selected configuration, particularly for Bi-Active models. |
The range comprises 6 configurations: single-side or Bi-Active heating, each available in 300, 450 and 600 mm with a 5 mm seal width.
